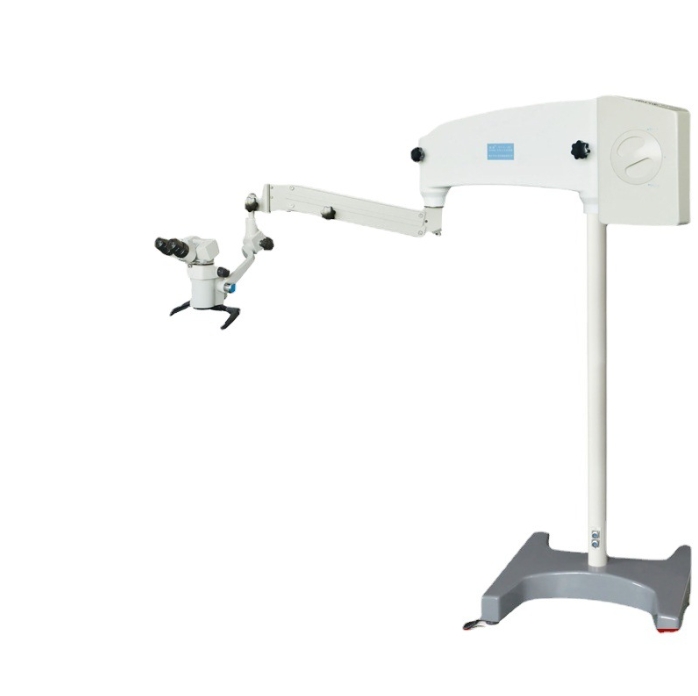

Technical Parameter

1、 Microscope section

main mirror

Eyepiece: 12.5X Alphard type wide-angle eyepiece

Observation slope: 45 °

Pupil distance: 50mm 76mm,

Refractive power adjustment ± 7D (binocular)

X-Y speed regulation: 2.5mm/s foot control

Magnification factor: 4X-20X electric infinite continuous zoom

Field of view: 8mm 65mm

Working distance: ≥ 180mm

Assistant Mirror

Stereoscopic same light path, 4X-20X manual infinite continuous zoom



2、 Lighting system

Form: Wide diameter optical fiber, coaxial illumination with cold light source

Light source: Dual lamp 15 ∨/150W, German OSRAM halogen lamp

Control mode: Four level dimming

Continuing Adjust

Illumination: ≥ 50000LX

Power supply voltage and frequency: 220 ∨± 10% 50Hz

3、 Machine base part

Horizontal arm extension length: 1230mm

Up and down adjustment range: 250mm

Fine adjustment range: 40mm

Foot controlled switches: X-Y plane mover, electrically controlled zoom, electrically controlled fine adjustment

The auxiliary mirror can rotate and form a position of 90 ° -180 ° with the main mirror.

  Frequently Asked Questions (FAQ)

Q： What types of microscope products does your company mainly provide?
A： We focus on the research and production of high-precision optical microscopes and digital imaging solutions, covering basic teaching, industrial testing, and scientific research equipment, suitable for various scenarios such as material analysis, biological observation, precision manufacturing, etc. The product emphasizes clarity, stability, and ease of operation, which can meet the specialized needs of different users.

Q： How to ensure after-sales service and technical support?
A： We provide full technical consultation, equipment calibration, and regular maintenance services, and are equipped with a professional team of engineers to quickly respond to customer needs. Simultaneously supporting customized software and hardware upgrades to ensure long-term efficient operation of the equipment. If there are any usage issues, they can be resolved promptly through online guidance or on-site service.

Q： How to choose a microscope that suits your own needs?
A： It is recommended to screen based on the characteristics of the observed samples, accuracy requirements, and usage scenarios (such as laboratories, production lines, etc.). We provide free technical consultation to assist users in matching the best configuration solution, and can also arrange prototype demonstrations to visually experience product performance before making decisions.

If you have any questions, please contact Silen, the regional sales manager, on WhatsApp at 86 15073174281

At Med Shoping, we are committed to becoming the preferred partner for healthcare institutions worldwide. As a gold medal supplier with strict platform certification, we provide one-stop procurement solutions for hospitals, clinics, and medical institutions with rigorous quality control standards and highly competitive prices. From product screening to global rapid delivery, our professional team provides full support to ensure that every medical product meets ISO 13485 and CE certification requirements. Choosing us means choosing efficiency, transparency, and peace of mind.
